Insulated Folding Door (90mm)F Z - S F 9 0

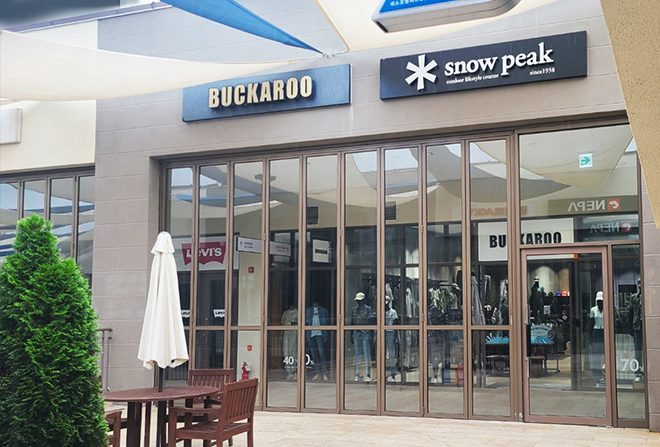

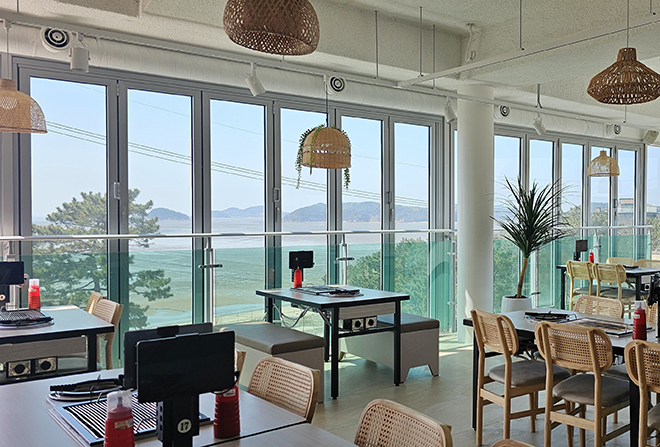

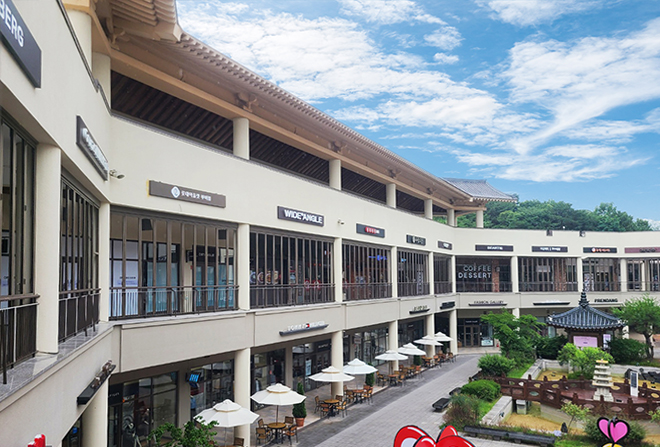

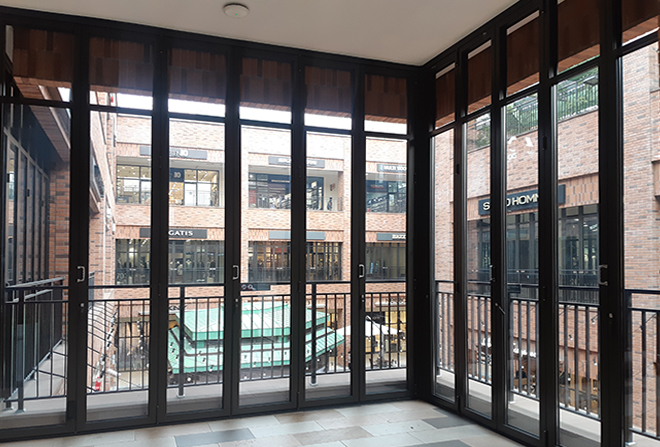

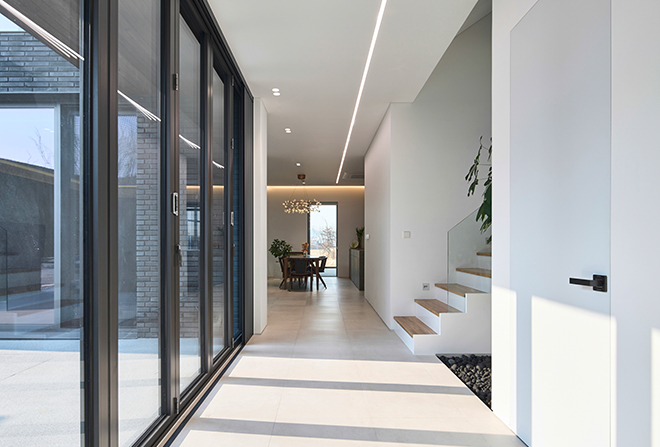

Insulated Folding Door (90mm)
As an insulated folding door, this product satisfies both condensation prevention and insulation by applying polyamide insulation material to address energy loss and condensation caused by aluminum's thermal conductivity. This is an upgraded version of the existing 70mm product with further enhanced insulation and airtightness.
Product Details
| Application | Indoor / Outdoor available | Frame Material | Aluminum profile |
| Max. Installation Width | 800mm | Coating | Fluororesin coating |
| Max. Installation Height | 6000mm | Basic Colors | Black, White, Custom colors available |
| Max. Number of Panels | 30 panels (Left storage: 15 panels, Right storage: 15 panels) | Drive System | Upper/lower track runner system |
| Glass Specifications | 39mm, 41mm, 43mm | Locking Device | Smart handle standard type |
| Glass Types | Tempered glass, Clear glass, Double glazing, Triple glazing, etc. | Locking Method | Simultaneous upper and lower locking |
-

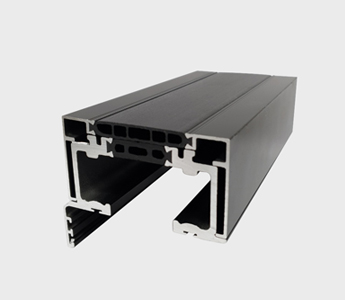

Upper Rail
Made of aluminum (AL-6N01) high alloy material, designed to minimize damage and wear, and applies polyamide insulation material. Designed to allow the upper runner to function as a guide
-

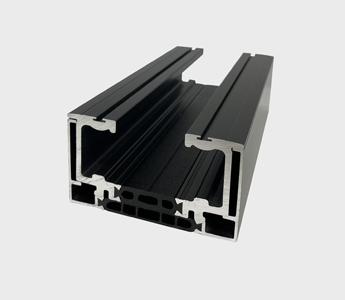

Lower Rail
Made of aluminum (AL-6N01) high alloy material, designed to minimize damage and wear, and applies polyamide insulation material. Designed to allow the lower runner to move smoothly
-

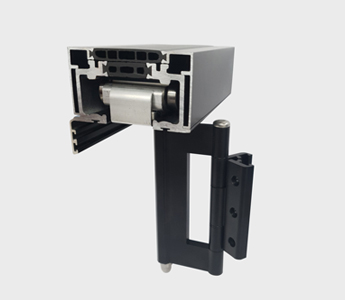

Upper Rail + Runner
Made of aluminum (AL-6N01) high alloy material and bearing roller type, designed to open smoothly when running on the rail
-

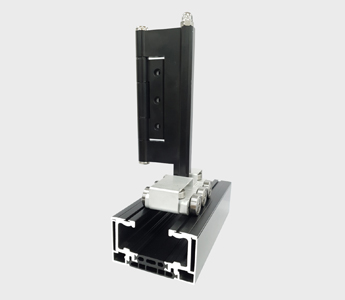

Lower Rail + Center Bar Set
Made of aluminum (AL-6N01) high alloy material and bearing roller type, designed to open smoothly when running on the rail and safely designed to prevent runner separation

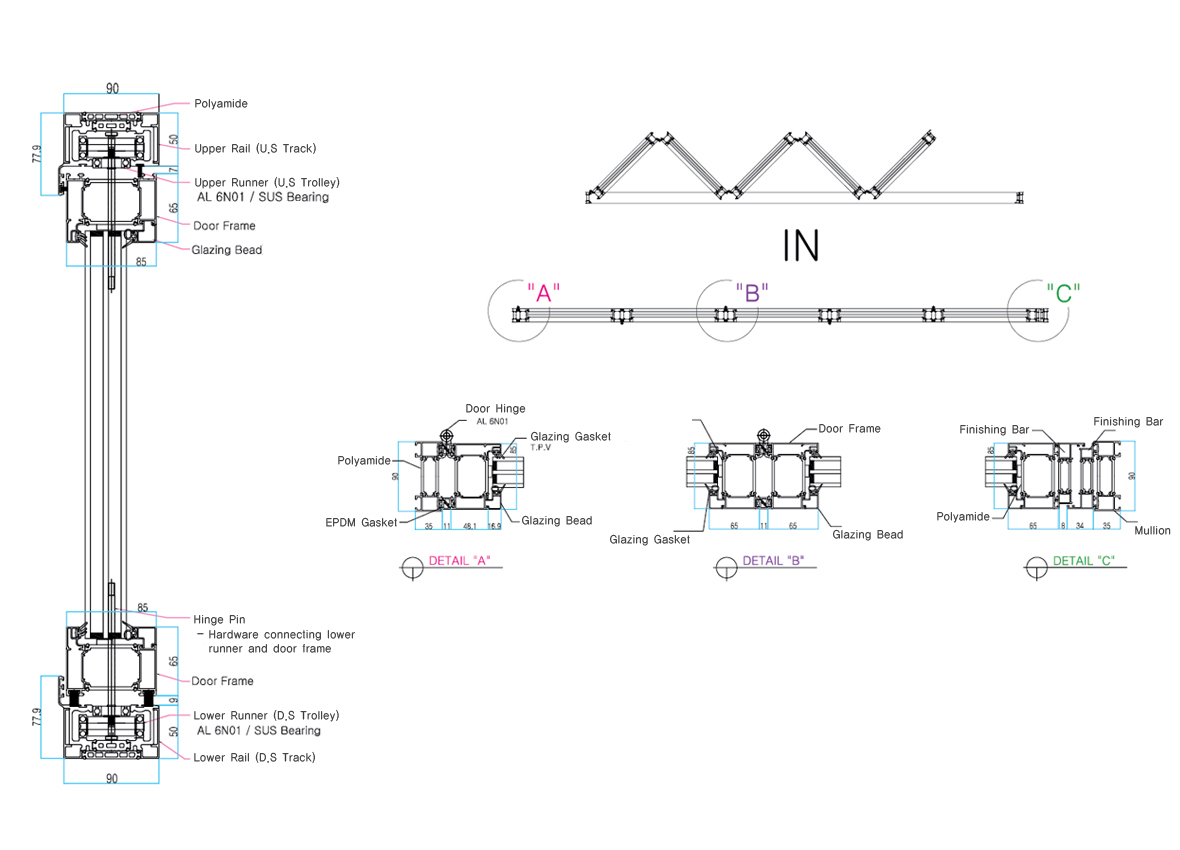

Design Drawing
